BlueTag TH20 Bluetooth Temperature and Humidity Data Logger

BlueTag TH20 Bluetooth Temperature and Humidity Data Logger

Multiple users view, share and export data with different mobile phones

Comprehensive data analysis, graphing, and data filtering (by minute) by free APP

Signed PDF report and email report directly

Support Android and iOS

Multilingual user interface

Battery replaceable


Introduction

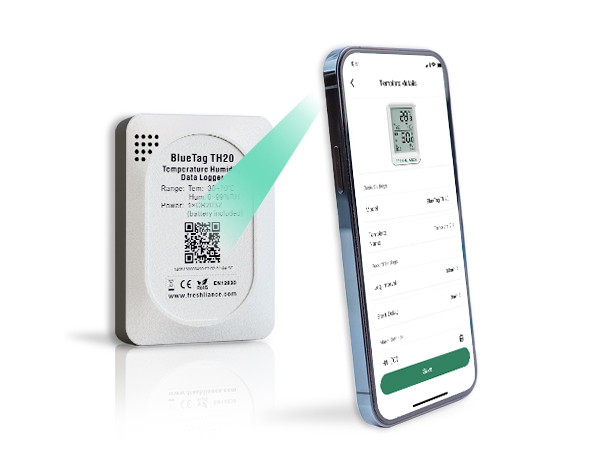

BlueTag TH20 is a reusable temperature and humidity data logger based on Bluetooth communication. The APP, Tkeeper, is especially designed for remote parameters configuration, data review and sharing, without opening the container, package, refrigerator, etc. This compact and portable Bluetooth device also allows multiple users to remotely view and share data via the APP, to avoid the common connection troubles of conventional recording devices, and greatly improve work efficiency and save time.

Features

Multiple users view, share and export data with different mobile phones

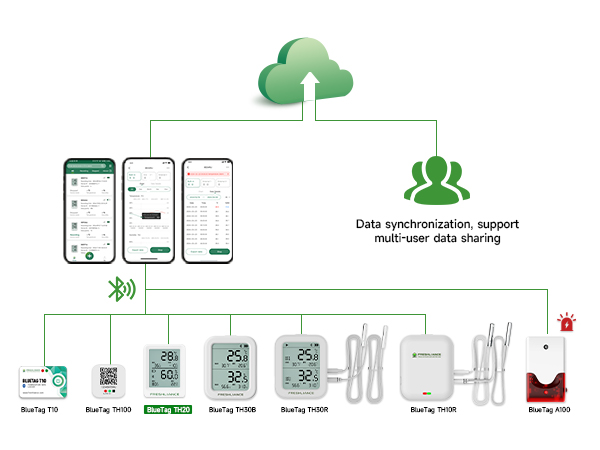

Different users can use their mobile phones to view and export the data of the same device, etc. With Bluetooth connection, users can use the APP to get the latest data and history data from the logger and automatically upload them to the cloud, so other users out of the connection range can also get the data from the cloud simultaneously.


Comprehensive data analysis, graphing, and filtering (by minute) at no cost

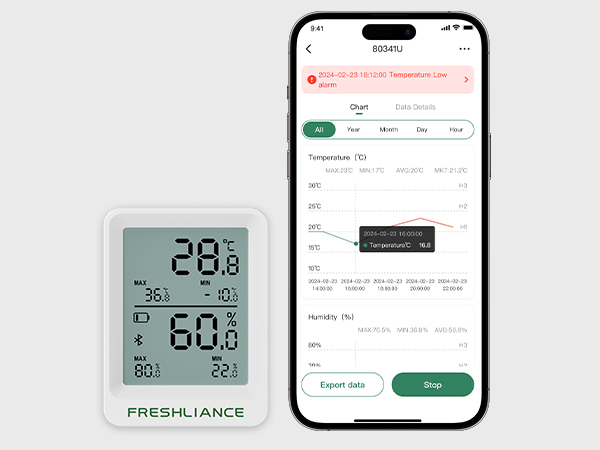

Users can view real-time or history data in numbers and graphs, with automatic statistical results of max., min., avg., and MKT value, etc. Data filtering lets users quickly analyze relevant data without sifting through the entire dataset. For data export, the APP allows users to filter and sort data by minute at no cost. It makes the analysis more focused and efficient.


Data alarm via APP

In case of exceeding the preset limit thresholds, the APP will automatically give an alarm.


Signed PDF report and email report directly

All monitoring data can be remotely accessed and exported in PDF/CSV format via the APP. The report can be emailed to specified email address directly. And if a signature is needed, users can stop the logger and then add an electronic signature on the PDF report.


Multilingual user interface

The Tkeeper APP supports multiple languages, including Chinese, English, French, German, Portuguese, Russian and Spanish, etc., more friendly for users to use.


Support Android and IOS

The APP Tkeeper is provided in Android and iOS version. Users can easily search for and download it to an iPhone or Android device for use.


Battery replaceable

This data logger is reusable and battery-replaceable. When its battery runs out, users can open the back cover to replace the battery.


Specifications

Model

BlueTag TH20

Memory Capacity

Max. 65,000 readings

Temperature Range

-30℃~+60℃

Temperature Accuracy

±0.5℃ F.S.

Humidity Range

0~100%RH

Humidity Accuracy

±3.0%RH

Communication Distance

54m (open space)

Alarms

Max. 6 alarm points

Logging Interval

1 minute-99 minutes

Start Delay

0 minute-72 hours

Battery Life

Max. 200 days

Installation

3M adhesive tape

Connection

Bluetooth 5.2

Battery

3.0V CR2032 lithium battery

APP Language

Chinese, English, French, German, Portuguese, Russian, Spanish

APP OS

Android/IOS

Temperature Unit

℃, ℉

Report Format

PDF & CSV

Weight

36.5g

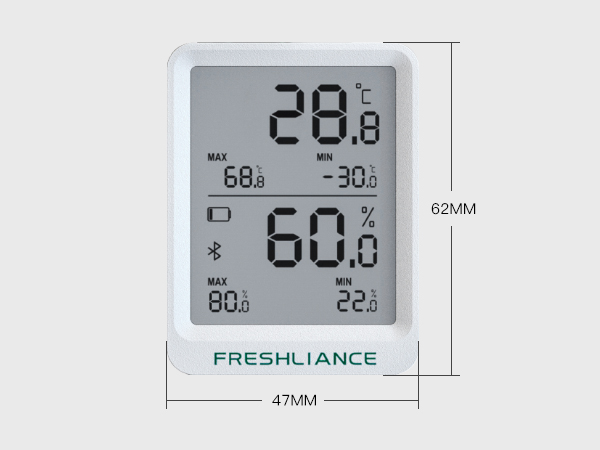

Dimension

62mm*47mm*13mm

Applications

BlueTag TH20 Bluetooth temperature and humidity data logger features Bluetooth wireless communication in device configuration, data review, export and sharing, no damages to the cold chain control. The Bluetooth temperature humidity sensor is suitable for temperature and humidity monitoring in cold chain logistics and storage of reagents, clinical samples, vaccines, pharmaceuticals and food items, etc.


Tkeeper


Tkeeper is a mobile APP designed for Freshliance Bluetooth temperature and humidity data loggers. Both Android and iOS versions are available. This APP works with wireless communication via Bluetooth technology. It supports remote device configuration and control, online data viewing, filtration, analysis and synchronization among multiple users, as well as data export with signature and email service. It also features powerful graphing functionality and automatic data analysis with the results of Max., Min., Avg. and MKT values, etc., as well as free data cloud storage for 2 years.

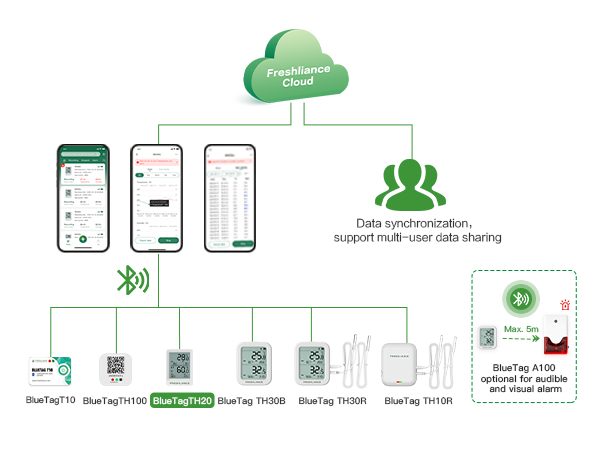

It works with BlueTag T10, BlueTag TH10, BlueTag TH20, and BlueTag 30. Multiple devices can be added to the APP simultaneously, so as to help users to manage both devices and data efficiently. And for a device with multiple monitoring channels (with one or two external probes), the APP will automatically identify the probes and support separate configuration, data viewing and export for each monitoring channel.


In addition, this APP supports multiple languages, such as English, Chinese, German, Russian, and Portuguese, Spanish etc., and some practical performance, such as template management, files management and group management.
