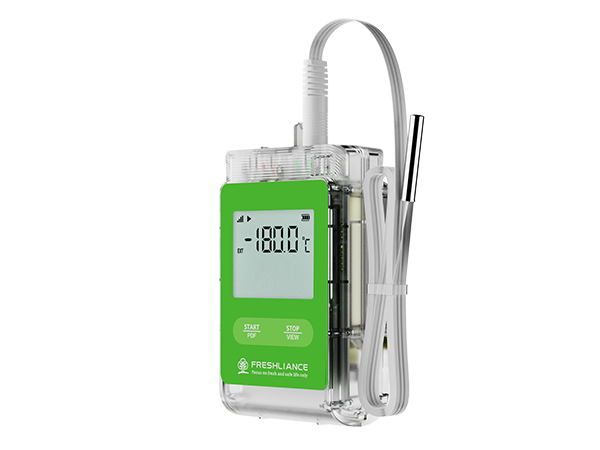

Fresh Tracker 10-ETU for Ultra-low/Ultra-high Temperature

Introduction

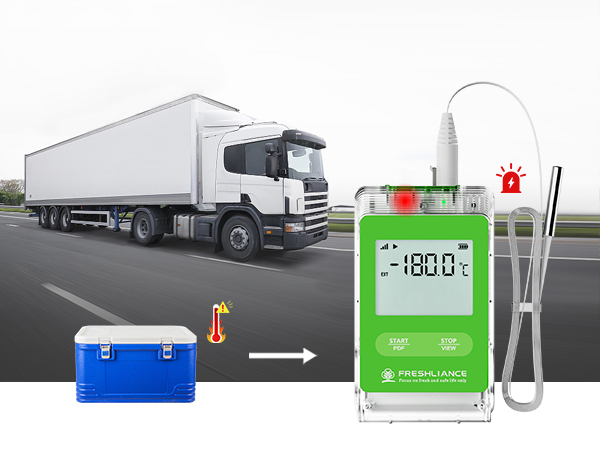

Fresh Tracker 10-ETU is a 4G real-time data logger for global connectivity in smart logistics, supporting ultra-low/ultra-high temperature monitoring, as well as humidity, location, light and vibration monitoring. It transmits data to our Freshliance Cloud via 4G network. Users can monitor data online remotely by smartphone APP or computer platform, and be notified via SMS and email in real time, in case of exceeded set limits.

Features

4G(LTE_Cat1)/ 2G fallback cellular coverage

This data logger works with 4G communication, and 2G will deliver critical backup connectivity when 4G coverage is not available in some locations.

24/7 Real time data monitoring

This data logger is designed for uninterrupted and all-day monitoring of temperature, humidity, location, light and vibration in real time. After configuration and start up, it will automatically monitor and record data as configured. And It is powered by a rechargeable lithium battery, which can be used while charging, so as to ensure steady and reliable data monitoring.

Location mapping

This data logger uses LBS positioning technology (GPS optional) for location monitoring. In the APP and cloud platform, an E-map is provided for intuitive display of the real-time and history location information, with specific longitude and latitude information.

Cloud Platform and APP for real-time data view and management worldwide

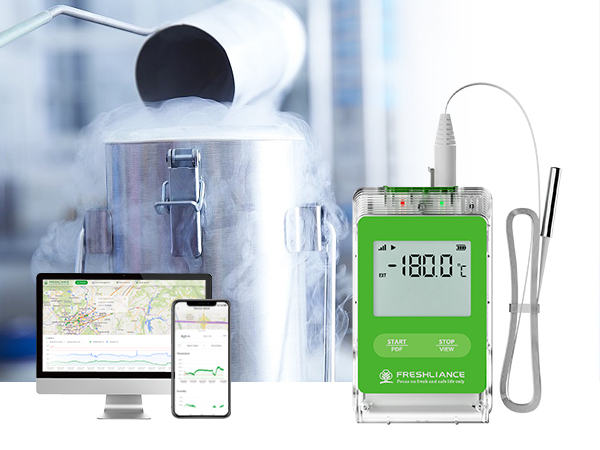

With the 4G network, all monitoring data will be transmitted to the cloud with the configured uploading interval. Freshliance provides both the cloud platform and APP for users to remotely view, manage and download data, with advanced data analysis, filtration and alarm, etc, saving time and efforts.

Persistent caching during offline mode and data re-upload after network recovery

This data logger can store up to 65,000 records in its internal memory, which can protect monitoring data against network failure. Even if the network fails, the logger can still store all data to the onboard memory, and re-upload them after network connection, thus ensuring there are no gaps in the data history.

APP, Email, SMS Alert

In case of data alarms, SMS and Email messages can be sent via 4G data connection. And the alarm data will also be automatically reminded and recorded in the cloud platform and APP. Users can remotely receive and check such alarm data in real time worldwide,  to take precautions and avoid losses.

Dual report system

Users can easily track and export data via the APP and cloud platform. Besides, users can also connect the logger to a PC via USB port and press its left button to locally download PDF/CSV reports, not subject to network connection. Temporary reports are available too.

Flexible ultra thin cable optional, 0.3mm thick and 7.5mm wide

For enclosed or sealed spaces with higher sealing requirements, users can choose a flexible ultra thin cable, which is 0.3mm thick, 7.5mm wide, and 2m long (length customizable), featuring fast data transmission, high softness and foldability.

Specifications

Applications

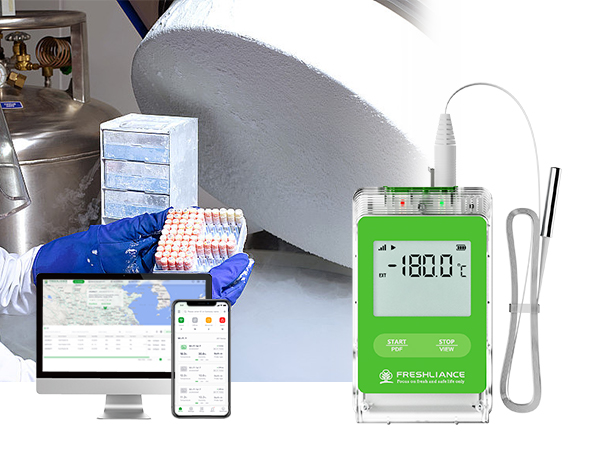

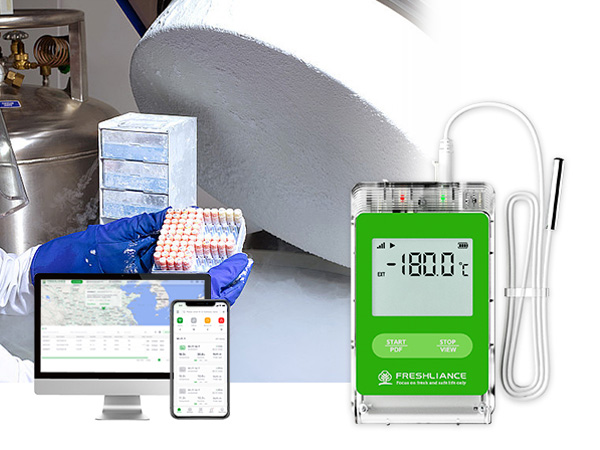

Fresh Tracker 10-ETU is a real-time data logger based on 4G communication. It is widely used for ultra-low or ultra-high temperature monitoring in the transportation of high-end seafood, blood cells, bacteria, viruses, semen, biological products, ocean products, electronic devices and special materials etc., with location, humidity, light and vibration, enabling users to remotely access data in real time and make decisions timely.
