Paired by Bluetooth network and data review by APP
Multiple users to view, share and export data simultaneously

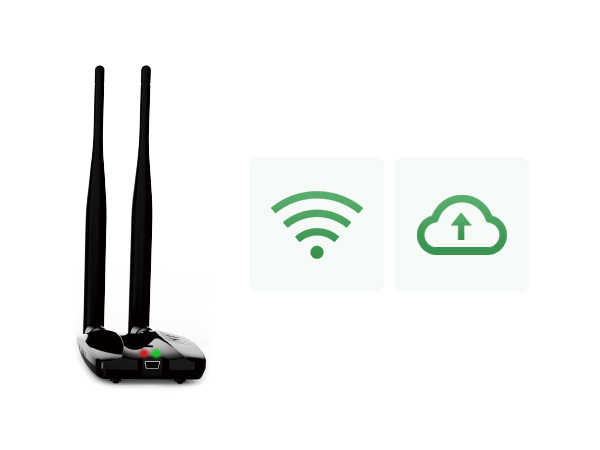

Real time monitor with gateway available
Comprehensive data analysis, graphing, and data filtering (by minute) at no cost
Multilingual user interface
Android and iOS APP available
External probes with various temperature ranges
Flexible ultra thin cable optional (0.3mm thick and 7.5mm wide)

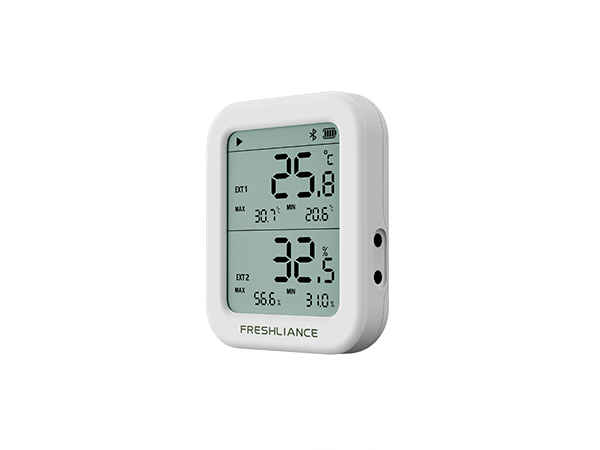

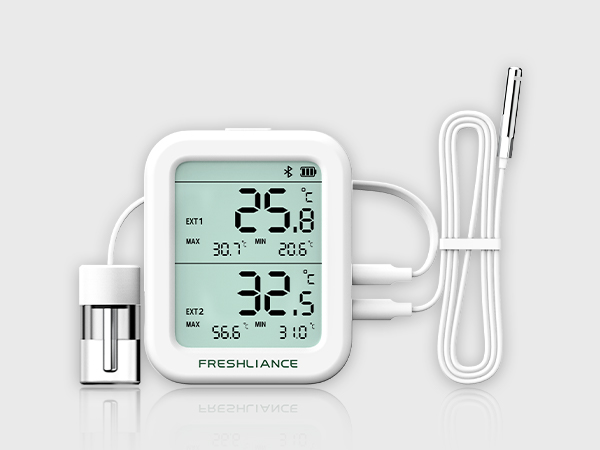

BlueTag TH30 is a multi-use configurable temperature and humidity data logger with Bluetooth low energy technology. It allows users to remotely get and manage the data outside of the package or vehicle through the App Tkeeper. This logger can also enable users to make measurements with one or two external probes for better flexibility and ease. BlueTag TH30 Ble temperature humidity data logger provides a large probe selections for different environmental applications, especially the ultra-low temperature. Among them, using different technologies, BlueTag TH10R, BlueTag TH10R-I can be used to connect with gateway to realize real time temperature/humidity monitoring.
Paired by Bluetooth network and data review by APP
Users can use a Bluetooth-enabled smartphone to scan the device QR code outside of the package or container to view and track data via the Tkeeper APP.

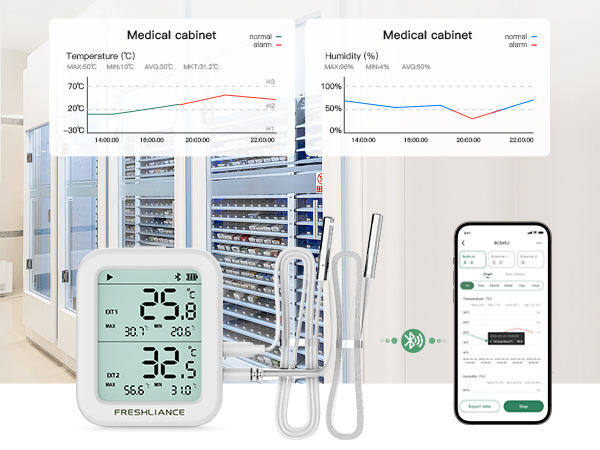

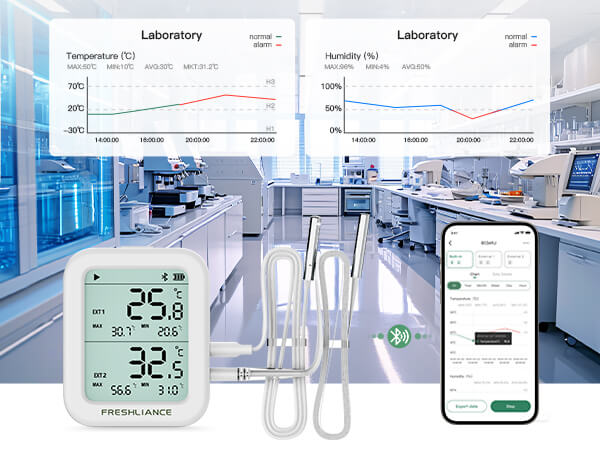

Comprehensive data analysis, graphing, and filtering (by minute) at no cost
Users can view real-time or history data in numbers and graphs, with automatic statistical results of max., min., avg., and MKT value, etc. Data filtering lets users quickly analyze relevant data without sifting through the entire dataset. For data export, the APP allows users to filter and sort data by minute at no cost. It makes the analysis more focused and efficient.
Multiple users to view and share data history simultaneously

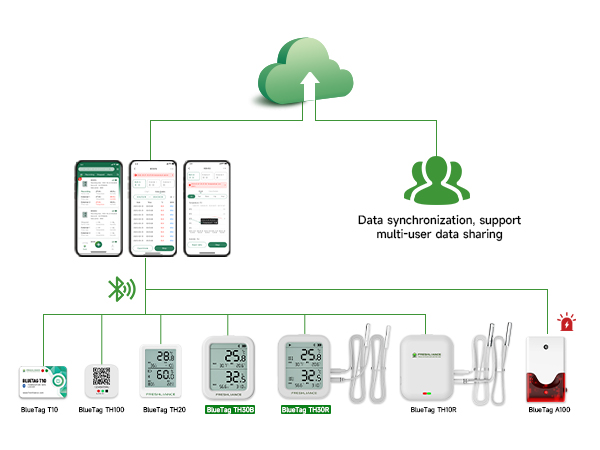

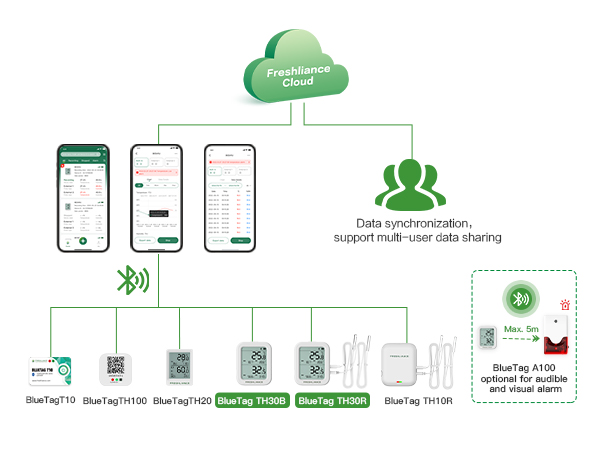

With Bluetooth connection, users can use the APP to automatically get all the latest data from the logger and upload them to the cloud, so other users out of the connection range can also get the latest data from the cloud simultaneously.
Report signature and emailing
All monitoring data can be remotely accessed and exported in PDF/CSV format via the APP. All reports, including temporary reports, can be sent to an electronic mail box. And if a signature is needed, users can stop the logger and then add an electronic signature on the PDF report.
Android and iOS APP
The APP Tkeeper is provided in Android and iOS version. Users can easily search for and download it to an iPhone or Android device for use.
Multilingual user interface
The APP supports multiple languages, including Chinese, English, French, German, Portuguese, Russian and Spanish, etc.

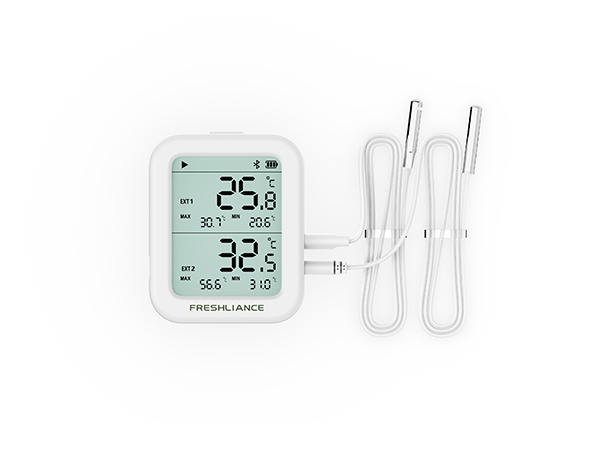

A large selection of external probes

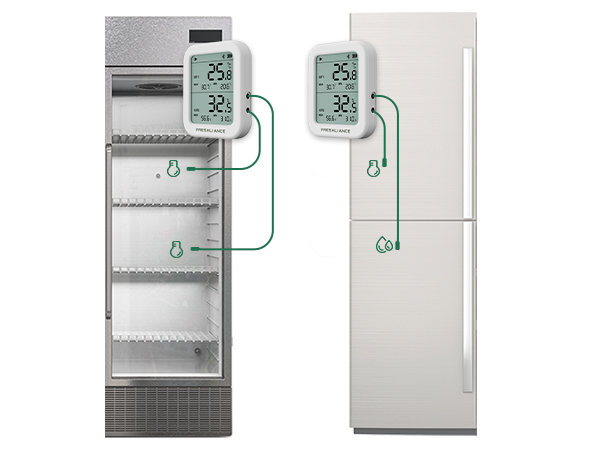

In difficult-to-reach areas or inside specialized conditions, users can plug one or two external probes to the main device for temperature and humidity monitoring and logging. The probe cable is ordinarily 2m long, with a sharp or blunt probe head. Other lengths are customizable.

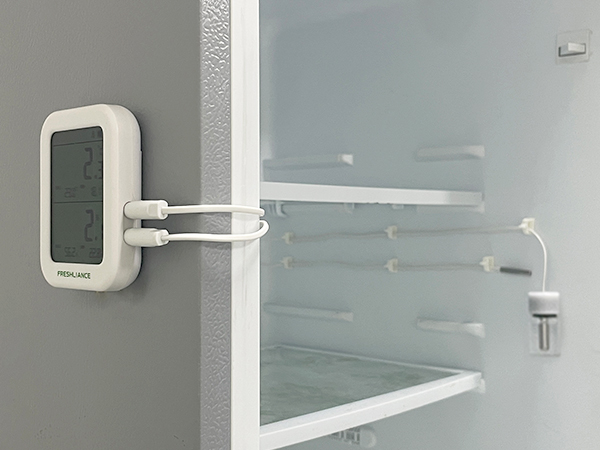

Flexible ultra thin cable optional
For enclosed or sealed spaced with higher sealing requirements, users can choose the flexible ultra thin cable, which is 0.3mm thick and 7.5mm wide, and of high temperature resistance and strong anti-interference capacity.
|
Model |
BlueTag TH30B |
BlueTag TH30R |
BlueTag TH30R-I |
BlueTag TH30R-ETU |
|
Communication Distance |
50m (open space) |
|||
|
Internal Probe Type |
Temperature and humidity |
|||
|
External Probe |
× |
Optional |
√ |
|
|
External Probe Channels |
× |
Max. 2 probes |
||
|
External Probe Type |
× |
See External Probe List |
||
|
Built-in Sensor |
-30℃~+70℃; ±0.5℃ F.S. |
|||
|
0~100%RH; ±3%RH |
||||
|
Temperature Units |
℃, ℉ |
|||
|
Alarms |
Max. 6 Alarm Points each probe |
|||
|
Report |
PDF/CSV |
|||
|
Connection |
Bluetooth 5.2 |
|||
|
Start Delay |
0minute~72hours |
|||
|
Logging Interval |
1minute ~99minutes |
|||
|
Memory Capacity |
20000 readings each probe |
|||
|
APP Language |
Chinese, English, French, German, Portuguese, Russian, Spanish |
|||
|
Certificate |
CE, FCC, EN12830, GMP, IATA, RoHS, HACCP, RTCA DO-160G |
|||
|
Device Dimensions |
83mm*68mm*20.5mm |
|||
|
Battery |
2*Replaceable AAA batteries |
Rechargeable lithium battery |
||
|
Installation |
Hanging, Folding stand |
|||
|
Weight |
85g |
90g (Main device) |
||
Externl Probe List:
|
Sensor Type |
Range |
Accuracy |
Insulation Option |
Features |
|
NTC sensor |
-30℃~+70℃ |
±0.5℃ (-30℃~+50℃) ±1.0℃(+50℃~+70℃) |
PVC cable |
Cost effective |
|
RTD sensor |
-196℃~+200℃ |
±0.5℃ (-100℃~+80℃) ±1.0℃ (Other) |
Teflon cable |
Anti-high and low temperature, high corrosion resistance |
|
Digital temperature sensor |
-90℃~+200℃ |
±0.3℃ (-40℃~+100℃) ±0.5℃ (-80℃~-40℃; +100℃~+150℃) ±1.0℃ (Other) |
Silicone cable |
Highly flexible, waterproof, high temperature resistance |
|
Temperature and humidity sensor |
-40℃ ~+85℃ |
±0.5℃ F.S. |
Flexible ultra thin cable |
Good sealing effect, for wiring in enclosed or sealed spaces |
|
0-100%RH |
±3%RH (25℃, 20%~90%RH) ±5%RH (Other) |
|||
|
Standard cable length: 2m; Customizable length available: 5m, 10m, 15m or 20m.) |
||||
BlueTag TH30 Bluetooth temperature and humidity data logger features Bluetooth wireless communication in measurements, no damages to the cold chain control. It is suitable for temperature and humidity monitoring in the fields like smart house, food, archives management, incubator, refrigerator car, laboratory, greenhouse, animal farming and pharmacy for cold chain logistics and storage of reagents, clinical samples, vaccines, pharmaceuticals and food items, etc.
Tkeeper
Tkeeper is a mobile APP designed for Freshliance Bluetooth temperature and humidity data loggers. Both Android and iOS versions are available. This APP works with wireless communication via Bluetooth technology. It supports remote device configuration and control, online data viewing, filtration, analysis and synchronization among multiple users, as well as data export with signature and email service. It also features powerful graphing functionality and automatic data analysis with the results of Max., Min., Avg. and MKT values, etc., as well as free data cloud storage for 2 years.
It works with BlueTag T10, BlueTag TH10, BlueTag TH20, and BlueTag 30. Multiple devices can be added to the APP simultaneously, so as to help users to manage both devices and data efficiently. And for a device with multiple monitoring channels (with one or two external probes), the APP will automatically identify the probes and support separate configuration, data viewing and export for each monitoring channel.
In addition, this APP supports multiple languages, such as English, Chinese, German, Russian, and Portuguese, Spanish etc., and some practical performance, such as template management, files management and group management.
