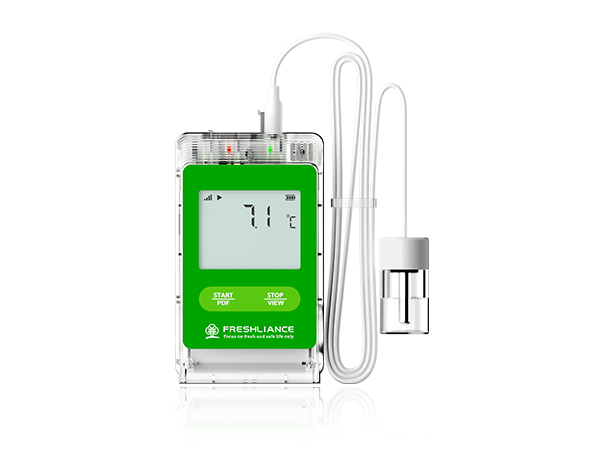

Fresh Tracker 10 (Multi Use) with Optional External Probe

Fresh Tracker 10 (Multi Use) with Optional External Probe

4G(LTE_Cat1)/ 2G fallback cellular coverage

24/7 Real time monitoring for location, temperature, humidity, light and vibration, etc.

Location mapping

Cloud Platform and APP for data review, analysis and export

Stores all data to the onboard memory during network unavailability

Multiple alarms: APP, Email, SMS, LCD, LED display

Flexible ultra thin cable optional, 0.3mm thick and 7.5mm wide


Introduction

Fresh Tracker 10 (Multi Use) is a multi-use 4G real time data logger for real-time temperature, humidity, location, light and vibration monitoring in cold chain transportation. It can transmit data by a built-in SIM card to the cloud platform and APP. Thus users can remotely access measurement data and get SMS and email alarms in real time anywhere in the world. Besides, this temperature and humidity data logger also allows users to locally check its work status via the LCD screen and download PDF/CSV reports via USB connection.

Features

4G(LTE_Cat1)/ 2G fallback cellular coverage

This data logger works with 4G communication, and 2G will deliver critical backup connectivity when 4G coverage is not available in some locations.


24/7 Real time data monitoring

This data logger is designed for uninterrupted and all-day monitoring of temperature, humidity, location, light and vibration in real time. After configuration and start up, it will automatically monitor and record data as configured. And It is powered by a rechargeable lithium battery, which can be used while charging, so as to ensure steady and reliable data monitoring.


Location mapping

This data logger uses LBS positioning technology (GPS optional) for location monitoring. In the APP and cloud platform, an E-map is provided for intuitive display of the real-time and history location information, with specific longitude and latitude information.

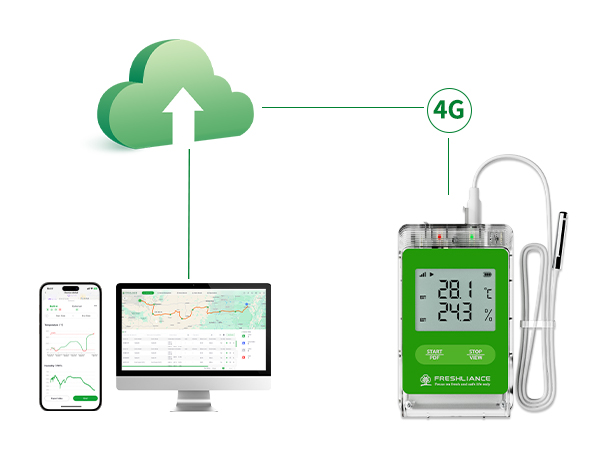

Cloud Platform and APP for real-time data view and management worldwide

With the 4G network, all monitoring data will be transmitted to the cloud with the configured uploading interval. Freshliance provides both the cloud platform and APP for users to remotely view, manage and download data, with advanced data analysis, filtration and alarm, etc, saving time and efforts.


Persistent caching during offline mode and data re-upload after network recovery

This data logger can store up to 65,000 records in its internal memory, which can protect monitoring data against network failure. Even if the network fails, the logger can still store all data to the onboard memory, and re-upload them after network connection, thus ensuring there are no gaps in the data history.


APP, Email, SMS Alert

In case of data alarms, SMS and Email messages can be sent via 4G data connection. And the alarm data will also be automatically reminded and recorded in the cloud platform and APP. Users can remotely receive and check such alarm data in real time worldwide,  to take precautions and avoid losses.


LCD, LED alert

In addition to remote alarm notification, this data logger will give alarm reminders via its LCD display and LED indicator light. The LCD screen and LED lights can also help users to identify the power, signal, and Modbus connection status.


Dual report system

Users can easily track and export data via the APP and cloud platform. Besides, users can also connect the logger to a PC via USB port and press its left button to locally download PDF/CSV reports, not subject to network connection. Temporary reports are available too.

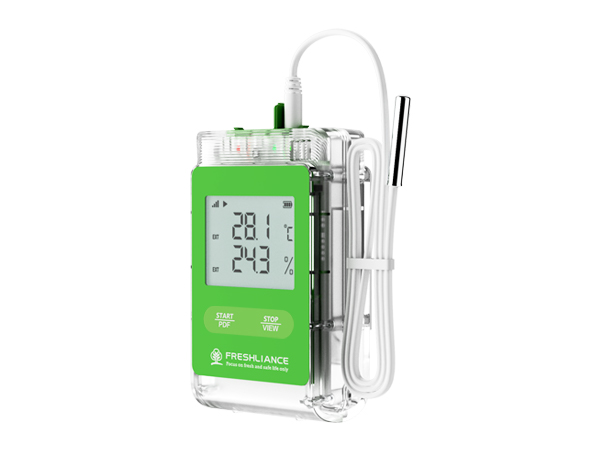

Multiple choices for external probe

Users can plug one external probe to this data logger for specific applications. There are a large selection for the the external probe, such as temperature probe, temperature and humidity probe, blunt or sharp probe, etc.


Flexible ultra thin cable optional, 0.3mm thick and 7.5mm wide

For enclosed or sealed spaces with higher sealing requirements, users can choose the flexible ultra thin cable, which is 0.3mm thick, 7.5mm wide, and 2m long (length customizable), featuring fast data transmission, high softness and foldability.


Specifications

Model

Fresh Tracker 10 (Multi Use)

Cellular Network

4G with 2G backup

Temperature Range

-20℃~+60℃

(Built-in sensor)

-30℃~+70℃

-40℃~+85℃

(External probe)

Temperature Accuracy

±0.5℃ F.S.

Humidity Range

0~100%RH

Humidity Accuracy

±3 %RH

Memory Capacity

Max. 65,000 readings

Temperature Units

℃/℉

Logging Interval

User configurable

Upload Interval

User configurable

Operation System

Web, APP

Positioning Technology

LBS positioning, GPS optional

Battery

Lithium battery, meets UN38.3

Local report

USB Type-C interface to download full trip report

Battery Life

60 days

(Logging interval: 10 minutes
         Uploading interval: 60 minutes)

Installation

3M adhesive tape, hanging

Charging Time

About 4 hours

Local report

USB Type-C interface to download full trip report

Dimensions

101mm*60mm*34mm

Weight

200g (main device)

Applications

Fresh Tracker 10 (Multi Use) is a real-time temperature recorder based on 4G communication. It is widely used for data monitoring in cold chain transportation of vaccines, meat, catering, sea food, etc., enabling users to remotely access data in real time and make decisions timely.


Ttracker


Ttracker is a mobile APP designed for Freshliance Fresh Tracker series. Both Android and iOS versions are available. It supports remote device configuration and control, online data viewing, filtration and analysis, powerful graphing functionality (with the automatically analyzed results of max., min., avg. and MKT value), management of device record, group and template, remote alarm notification via SMS and Email, temporary and final report, and APP settings, etc. As a tool for Freshliance real time data loggers, this APP provides all services worldwide and even provides an E-map for global positioning of Fresh Tracker series. With the E-map, users can quickly identify the location of a specific device, with brief monitoring data and waybill information.


Besides, the APP supports 24/7 data collection & analysis during the transit process, persistent caching during offline mode and data re-upload after network recovery. On the home page of the APP, users can also visually check the status of all devices added and immediately take precautions. It works with Fresh Tracker series, including Fresh Tracker 1 and Fresh Tracker 10, etc.
